Catheter Tip Forming System

Innovation from experts

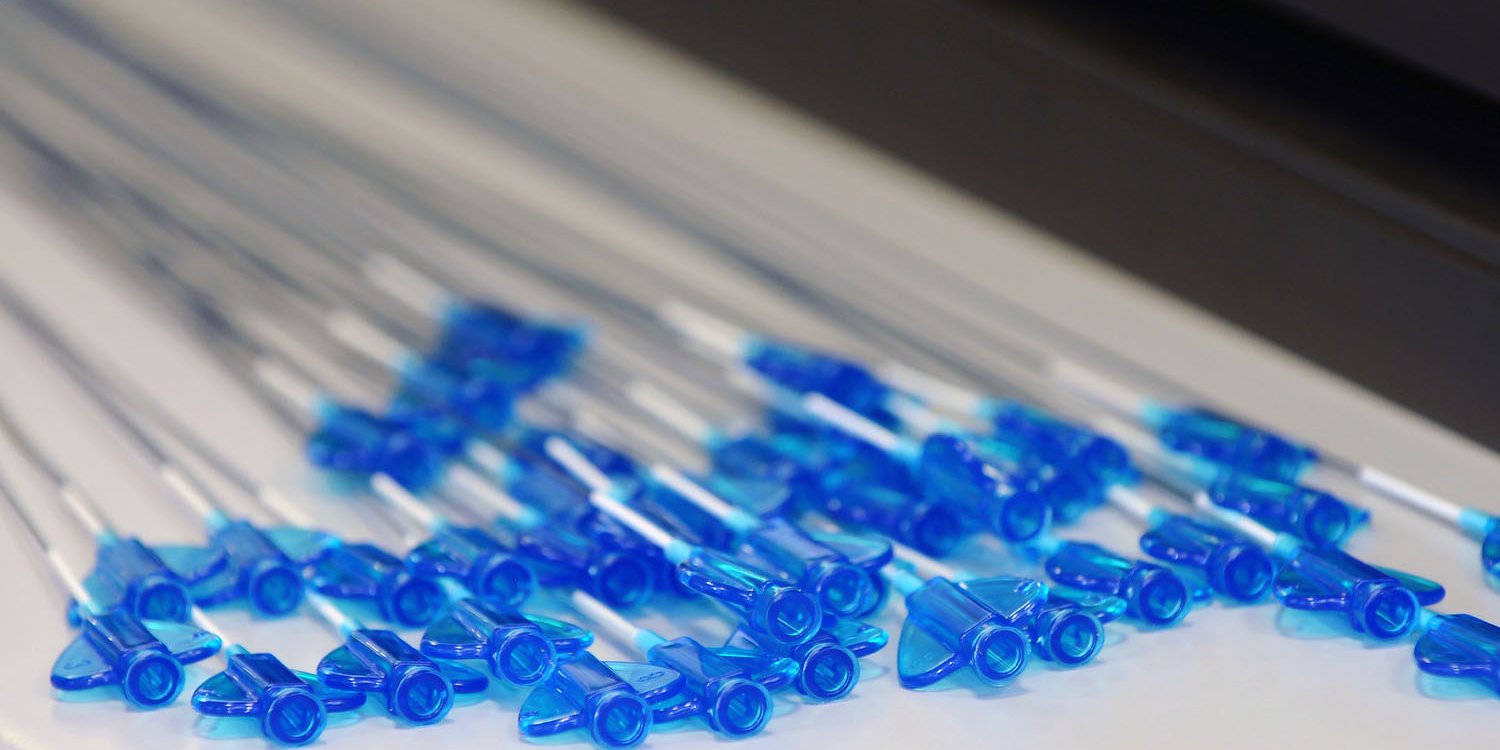

Catheter tip forming is a thermal process in which the end of a catheter is gently heated and formed into a defined shape. The result: smooth, atraumatic tips for safe and comfortable use in medical applications. Perfectly matched to the material, geometry and clinical requirements.

Products

Catheter Tip Forming System

CTF-807-LX1 by Onex-rf

RF Catheter Tip Forming System

The CTF – 807 model is designed to form the
distal or proximal end of a catheter tubing
using a metallic or non-metallic mold with
mandrel or without.

Application Configurations:

External Metallic Mold
Straight-Tapered tips
Rounded tips
Rounded-Edge tip
Hood-Formed tips

Do it yourself with confidence:

ONEX RF systems come with many essential features and benefits to serve the client needs on the R&D and manufacturing floor. Process development will become a joy when you can solely rely on the system capabilities
instead of others to finish your tasks on schedule.

ONEX RF will help you reach the level of confidence to do it yourself.

Receive a free product brochure by email now!

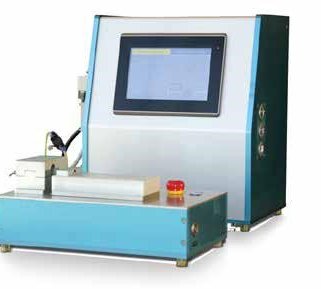

STB-807-LX1 by Onex-rf

RF Soft Tip Bonding Systems

The STB – 807 model is designed for bonding and forming tubing surfaces by an external or internal heating method.

Application Configurations:

External Metallic Mold
Butt-Joint
Bond soft tip to a shaft
Bond and form the tip
External Non-Metallic Mold
Butt-Joint
Over Under-Joint

Insight Information:

When using the External Metallic Mold, the process temperature is measured off the Mold surface and the temperature feedback is used for closed loop process control. When using internal heating methods, the Mold temperature is not readily available; the induction heat is controlled by Time & Power. To prevent a residual heat build-up, ONEX RF uses a special algorithm to maintain a stable heating process without temperature feedback.

Receive a free product brochure by email now!

MCTF-807-LX1 by Onex-rf

Micro-Catheter Tipping Systems

The CTF – 807 model is designed to form the
distal or proximal end of a catheter tubing
using a metallic or non-metallic mold with
mandrel or without.

Application Configurations:

External Metallic Mold
Straight-Tapered tips
Rounded tips
Rounded-Edge tip
Hood-Formed tips

Do it yourself with confidence:

ONEX RF will help you reach the level of confidence to do it yourself.

Receive a free product brochure by email now!

Catheter Manufacturing Turnkey Solutions

We offer tailor-made equipment for all steps and variants in the manufacture of catheters.

Excellence in innovation and a precise understanding of process requirements form the basis of all ONEX RF brand developments. We meet the diverse challenges in shaping and bonding catheter tips with approaches that are developed and developed in partnership with our customers. This ensures highly efficient and stable processes.

The team of highly qualified engineers at ONEX RF is used to responding flexibly and quickly to the specific needs of customers. It sees itself as an extended arm of the user's research department. This also applies to the processes for developing and designing nozzles. Samples are made and the processes are designed until a high-performance system is available for manufacturing the customer's products.

This means we are able to provide systems for forming and bonding catheters of the highest quality so that our customers can accurately implement their concept and manufacturing process at any time.
